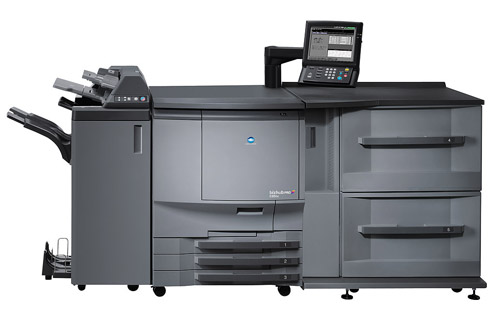

bizhub PRO C65hc




High-Chroma Color Printing. Closer reproduction of the sRGB color gamut of computer monitors from the Konica Minolta bizhub PRO C65hc. This color printing equipment has the ability to produce vivid color shades and values previously impossible to produce with traditional digital color printers.

High-Chroma Color Printing. Closer reproduction of the sRGB color gamut of computer monitors from the Konica Minolta bizhub PRO C65hc. This color printing equipment has the ability to produce vivid color shades and values previously impossible to produce with traditional digital color printers.

Robust Production Output. Print 65 ppm and up to 300,000 pages per month under minimal supervision using the bizhub PRO C65hc. The color production printer offers high capacity paper storage of up to 7,500 sheets in sizes ranging from 5.5" x 8.5" to 13" x 19.2".

Smooth Paper Handling. A built in air-assist unit and heater help to feed paper flawlessly into the C65hc. Plus, the bizhub PRO C65hc offers a short, straight paper path and can handle heavy and coated stock up to 300 G/M2.

High-Chroma Simitri HD Toner. Comprised of smaller, more uniform toner particles, Simitri HD toner produces more vivid images and crisper text. It also benefits the environment by saving energy since it uses oil-less fusing and operates at a lower temperature.

In-Line Finishing Options. Expand the capabilities of your Konica Minolta bizhub PRO C65hc with a variety of finishing options. Finishers are available for stapling, binding, six position folding and high capacity stacking.

Stacker Option. Deliver printed documents easily to offline finishing equipment, packing and mailing stations or loading docks with an optional 5,000 sheet stacker for your bizhub PRO C65hc. Stacker option comes with a convenient rollaway cart.

Image Controller Options. Manage your documents more easily with an image controller option designed to enhance your color printing equipment. The bizhub PRO C65hc is compatible with the External Fiery Image Controller or the External Creo Image Controller*.


Printer specifications
Print speed A4 65 ppm
Print speed A3 36 ppm
Print resolution Max.: 600 x 1,800 dpi
Gradations 256 gradations
System specifications
Paper weight 64-256 g/m² up to 300 g/m²
Duplex unit Non-stack type, 64-256 g/m²
Paper sizes A5-A3+ (330 x 487 mm)
Maximum image area 318 x 480 mm
Maximum paper input capacity 7,500 sheets (with PF-602)
4,250 sheets (with LU-202)
Maximum paper output capacity 5,200 sheets (with LS-505)
Warm-up time Less than 420 sec.
Main unit dimensions (W x D x H) 786 x 921 x 992 mm
Main unit weight 360 kg
Controller specifications
Type IC-304 Plus external Creo controller
CPU Intel Core 2 Duo @ 3.0 GHz
RAM Standard: 1,024 MB
HDD 3 x 250 GB
Interface Ethernet (10/100/1,000-Base-T)
Page description languages PostScript 3, PPML, TIFF, PDF, CT/LW, VPS
Printer drivers Windows 2000/XP/NT 4.0/Server 2003
Mac OS 9.x and 10.x
Type IC-305 external EFI Fiery controller
CPU Intel Core 2 Duo @ 2.13 GHz
RAM Standard: 1,024 MB
HDD 160 GB
Interface Ethernet (10/100/1,000-Base-T)
Page description languages PostScript 3, PPML, TIFF, PDF
Printer drivers Windows 2000/XP/Server 2003, Mac OS X
Accessories
Large capacity tray LU-202:
1 magazine, up to 2,500 sheets capacity,
up to 300 g/m²
Paper feed unit PF-602
2 magazines,
up to 6,000 sheets paper capacity
up to 300 g/m² (from lower tray)
Staple finisher FS-520
2-point and corner stapling,
stapling up to 50 sheets,
auto-shift sorting and grouping,
output for up to 3,000 sheets,
sub tray forup to 100 sheets
Booklet finisher FS-607
Booklet making for up to 20 sheets (80 images),
2-point and corner stapling,
stapling up to 50 sheets,
centre fold and letter fold in,
auto-shift sorting and grouping,
output for up to 2,500 sheets,
sub tray for up to 100 sheets
Punch kit PK-512 (for FS-607/FS-520)
Punching (2 and 4 holes selectable)

PK-513 (for FS-607/FS-520)
Punching (4 holes)
Post inserter PI-502 (for FS-607/FS-520)
Pre-printed sheet insertion
2 PI trays for 200 sheets each
Folding and punching unit FD-503
Pre-printed sheet insertion (PI),
2 PI trays for 500 sheets each,
punching (2 and 4 hole),
folding (half-fold, z-fold, gate-fold,
letter fold in,
letter fold out,
double-parallel-fold),
sub tray for up to 200 sheets
Stapling unit FS-521
Stapling of up to 100 sheets,
2-point and corner stapling,
variable staple length (cutting mechanism),
output for up to 3,000 sheets,
sub tray for up to 200 sheets,
auto-shift sort­ing and grouping
Booklet making unit SD-506
Booklet making of up to 50 sheets (200 images),
saddle stitching,
trimming,
output tray for up to 50 booklets,
multi letter fold in (up to 5 sheets),
multi half fold (up to 5 sheets)
Stacking unit LS-505
Up to 5,000 sheets stacking capacity,
trol­ley mounted stacker,
auto-shift stacking,
sub tray for up to 200 sheets,
paper clamp mechanism
Perfect binding unit PB-502
Hot melt glue binding system,
integrated 1-side trimming of cover sheets,
books from A5 up to A4+ (307 x 221 mm),
books from 10 sheets up to 30 mm spine width,
cover paper tray for up to 1,000 sheets,
sub tray for up to 200 sheets,
book stacking capacity of up to 3,300 sheets x 2 stacks
