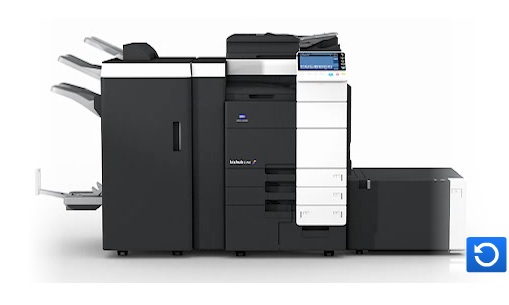

Konica Minolta Bizhub 754




Specifications

Copier Specifications

Copying process Electrostatic laser copy, tandem, indirect
Toner system Simitri® HD polymerised toner
Copy/print speed A4 mono (cpm) Up to 75 ppm
Copy/print speed A3 mono (cpm) Up to 37 ppm
Autoduplex speed A4 mono (cpm) Up to 75 ppm
1st Copy/print time mono (sec) 3.6 sec.
Warm-up time (sec) Approx. 22 sec.¹
¹ Warm-up time may vary depending on the operating environment and usage
Copy resolution (dpi) 600 x 600 dpi
Gradations 256 gradations
Multi-copy 1-9,999
Original format A5-A3
Magnification 25-400% in 0.1% steps; auto-zooming
Copy functions Chapter; cover and page insertion; proof copy (print and screen); adjustment test print; digital art functions; job setting memory; poster mode; image repeat; overlay (optional); stamping; copy protection

Printer Specifications

Print resolution (dpi) 1,800 x 600 dpi
1,200 x 1,200 dpi
Page description language PCL 6, PCL 5
PostScript 3 (CPSI 3016)
XPS
Operating systems Windows 2000
Windows XP (32/64)
Windows VISTA (32/64)
Windows 7 (32/64)
Windows 8 (32/64)
Windows Server 2000
Windows Server 2003/2008 (32/64), 2008 R2 (64), 2012 (64)
Macintosh OS X 10.x
Unix, Linux, Citrix
Printer fonts 80 PCL Latin
137 PostScript 3 Emulation Latin
Print functions Direct print of PCL, PS, TIFF, XPS, PDF, encrypted PDF files and OOXML (DOCX, XLSX, PPTX); mixmedia and mixplex; "Easy Set” job programming; overlay;

Scanner Specifications

Scan speed colour (opm) Up to 180 ipm
Scan Speed mono (opm) Up to 180 ipm
Scan resolution (dpi) Max.: 600 x 600 dpi
Scan modes Scan-to-eMail (Scan-to-Me)
Scan-to-SMB (Scan-to-Home)
Scan-to-FTP
Scan-to-Box
Scan-to-USB
Scan-to-WebDAV
Scan-to-DPWS
Network TWAIN scan
File formats JPEG; TIFF; PDF; PDF/A 1a and 1b (optional); Compact PDF; encrypted PDF; searchable PDF (optional); XPS; compact XPS; PPTX and searchable PPTX (optional); searchable DOCX/ XLSX (optional)
Scan destinations 2,100 (single + group); LDAP support
Scan functions Annotation (text/time/date) for PDF; up to 400 job programs; realtime scan preview

Fax Specifications

Fax standard Super G3 (optional)
Fax transmission Analogue
i-Fax
Colour i-Fax (RFC3949-C)
IP-Fax
Fax resolution (dpi) Max.: 600 x 600 dpi (ultra-fine)
Fax compression MH; MR; MMR; JBIG
Fax modem (Kbps) Up to 33.6 Kbps
Fax destinations 2,100 (single + group)
Fax functions Polling; time shift; PC-Fax; receipt to confidential box; Receipt to e-mail/FTP/SMB; up to 400 job programs

User box specification

Max. storable documents Up to 3,000 documents or 10,000 pages
Type of user boxes Public
Personal (with password or authentication)
Group (with authentication)
Type of system boxes Secure print
Encrypted PDF print
Fax receipt
Fax polling
User box functionality Reprint; combination
Download
Sending (e-mail/FTP/SMB and Fax)
Copy box to box

System Specifications

System memory standard (MB) 2,048 MB
System hard disc standard (GB) 250 GB
Interfaces standard 10-Base-T/100-Base-T/1,000-Base-T Ethernet; USB 2.0
Network protocols TCP/IP (IPv4 / IPv6); IPX/SPX; NetBEUI; AppleTalk (EtherTalk); SMB; LPD; IPP; SNMP; HTTP
Frame types Ethernet 802.2; Ethernet 802.3; Ethernet II; Ethernet SNAP
Automatic document feeder Up to 150 originals; A6-A3; 35-210 gsm
Dualscan ADF
Paper size A6-SRA3, customised paper sizes;
banner paper max. 1,200 x 297 mm
Printable paper weight (g/m²) 52-300 gsm
Paper input capacity (sheets) Standard: 3,650 sheets
Max.: 6,650 sheets
Paper trays standard Tray 1: 500 sheets, A5-SRA3, 52-256 gsm
Tray 2: 500 sheets, A5-SRA3, 52-256 gsm
Tray 3: 1,500 sheets, A4, 52-256 gsm
Tray 4: 1,000 sheets, A4, 52-256 gsm
Manual Bypass: 150 sheets, A6-SRA3, custom sizes, banner, 52-300 gsm
Paper trays optional Large Capacity Cabinet (1): 3,000 sheets, A4, 52-256 gsm
Large Capacity Cabinet (2): 2,500 sheets, A4-SRA3, 52-256 gsm
Automatic duplexing A5-SRA3; 52-256 gsm
Finishing modes (optional) Offset; group; sort; staple; punch; post insertion; z-fold; centre-fold; letter fold; booklet
Output capacity (w. finisher) Max.: 3,300 sheets
Output capacity (w/o finisher) Max.: 250 sheets
Stapling Max.: 100 sheets or 98 sheets + 2 cover sheets (up to 209 gsm)
Stapling output capacity Max. 1,000 sheets
Letter fold Up to 3 sheets
Letter fold capacity 30 sheets (tray); unlimited
Booklet Max.: 20 sheets or 19 sheets + 1 cover sheet (up to 209 gsm)
Booklet output capacity Max.: 100 sheets (tray); unlimited
Copy/print volume recommended (monthly) 80,000 pages
Copy/print volume max. (monthly) 215,000 pages
Toner lifetime Black 48,960 pages
Imaging Unit lifetime Black 300,000/1,200,000 (Drum/Developer)
Power consumption 220-240 V / 50/60 Hz
Less than 2.1 kW (system)
System dimensions (WxDxH, mm) 650 x 799 x 1155 mm
System weight (kg) Approx. 201 kg

System Features

Security ISO 15408 EAL3 (in evaluation); IP filtering and port blocking;
SSL2; SSL3 and TSL1.0 network communication;
IPsec support; IEEE 802.1x support; user authentication;
Authentication log; secure print;
Hard disk overwrite (8 standard types);
Hard disk data encryption (AES 128);
Memory data auto deletion; Confidential fax receipt;
Print user data encryption; copy protection
(Copy Guard, Password Copy) optional
Accounting Up to 1,000 user accounts; Active Directory support
(user name + password + e-mail + smb folder)
User function access definition
Biometric authentication (finger vein scanner) optional
ID card authentication (ID card reader) optional”
Software PageScope Net Care Device Manager
PageScope Data Administrator
PageScope Box Operator
PageScope Direct Print
Print Status Notifier
Driver Packaging Utility
Log Management Utility
  • All specifications refer to A4-size paper of 80 gsm quality.
  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
  • The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that any specifications mentioned will be error-free.
  • All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
