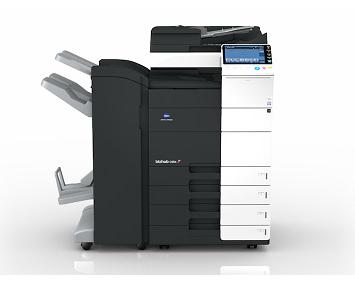

Bizhub C 224




Copier Specifications

Copying process Electrostatic laser copy; Tandem; indirect
Toner system Simitri HD® polymerised toner
Copy/print speed A4 mono (cpm) 22
Copy/print speed A4 colour (cpm) 22
Copy/print speed A3 mono (cpm) 14
Copy/print speed A3 colour (cpm) 14
Autoduplex speed A4 mono (cpm) 22
Autoduplex speed A4 colour (cpm) 22
1st Copy/print time mono (sec) 6.9
1st Copy/print time colour (sec) 8.3
Warm-up time (sec) Approx. 20 *
* Warm up time may vary depending on the operating environment and usage
Copy resolution (dpi) 600 x 600
Gradations 256 gradations
Original format A5-A3
Magnification 25-400% in 0.1% steps; Autozooming
Copy functions Chapter, Cover and page insertion; Proof copy (print and screen); Adjustment test print; Digital art functions; Job setting memory; Poster Mode; Image repeat; Overlay; Stamping; Copy Protection;

Printer Specifications

Print resolution (dpi) 1,800 x 600
1,200 x 1,200
Controller CPU Type PowerPC MPC8536 @ 800 MHz
Page description language PCL 6c (PCL 5c + XL3.0)
PostScript 3 (CPSI 3016)
XPS
Operating systems Windows 2000/XP/XP64
Windows VISTA 32/64
Windows 7 32/64
Server 2000/2003/2003x64/2008/2008x64/2008 (R2)
Macintosh 9.x/10.x
Unix/Linux/Citrix
Printer fonts 80x PCL Latin; 137x PostScript 3 Emulation Latin
Print functions Direct print of PCL, PS, TIFF, XPS, PDF, Encrypted PDF files and OOXML (docx, xlsx, pptx); Mixmedia and mixplex; Job programming "Easy Set”; Overlay; Watermark; Copy Protection, Carbon Copy Print

Scanner Specifications

Scan speed colour (opm) Up to 160/160 ipm
Scan Speed mono (opm) Up to 160/160 ipm
Scan resolution (dpi) Max.: 600 x 600
Scan modes Network TWAIN scan
Scan-to-email (scan-to-Me)
Scan-to-FTP
Scan-to-SMB (scan-to-Home)
Scan-to-Box
Scan-to-WebDAV
Scan-to-DPWS
Scan-to-USB
File formats JPEG; TIFF; PDF; PDF/A 1a and 1b (optional); Compact PDF; Encrypted PDF; Searchable PDF (optional); XPS; Compact XPS; PPTX and searchable PPTX (optional)
Scan destinations 2,100 (single + group); LDAP support
Scan functions Annotation (text/time/date) for PDF; up to 400 job programs; Realtime scan previev

Fax Specifications

Fax standard Super G3 (optional)
Fax transmission Analogue; i-Fax; Colour i-Fax (RFC3949-C); IP-Fax
Fax resolution (dpi) Max.: 600 x 600 (ultra-fine)
Fax compression MH; MR; MMR; JBIG
Fax modem (Kbps) Up to 33.6
Fax destinations 2,100 (single + group)
Fax functions Polling; Time shift; PC-Fax; Receipt to confidential box; Receipt to email/FTP/SMB; up to 400 job programs

User box specification

Max. storable documents Up to 3,000 documents or 10,000 pages
Type of user boxes Public;
personal (with password or authentication);
group (with authentication)
Type of system boxes Secure print; encrypted PDF print; fax receiving; fax polling
User box functionality Reprint; combination; download; sending (email/FTP/SMB and Fax); copy box to box

System Specifications

System memory standard (MB) 2,048
System hard disc standard (GB) 250
Network protocols TCP/IP (IPv4 / IPv6); IPX/SPX; NetBEUI; AppleTalk (EtherTalk); SMB; LPD; IPP; SNMP; HTTP
Frame types Ethernet 802.2; Ethernet 802.3; Ethernet II; Ethernet SNAP
Automatic document feeder Up to 100 originals; A6-A3; 35-163 gsm
R-ADF, Dualscan ADF
Paper size A6-SRA3, customised paper sizes;
banner paper max. 1,200 x 297 mm
Printable paper weight (g/m²) 52-300 gsm
Paper input capacity (sheets) Standard: 1,150
Max: 3,650
Paper trays standard Tray 1: 500 sheets, A5-A3, 52-256 gsm
Tray 2: 500 sheets, A5-SRA3, 52-256 gsm
Manual Bypass: 150 sheets, A6-SRA3, custom sizes, banner, 60-300 gsm
Paper trays optional Tray 3: 1x 500 sheets, A5-A3, 52-256 gsm
Tray 3 + 4: 2x 500 sheets, A5-A3, 52-256 gsm
Large Capacity Cabinet: 2,500 sheets, A4, 52-256 gsm
Automatic duplexing A5-SRA3; 52-256 gsm
Finishing modes (optional) Offset; group; sort; staple; punch; centre-fold; letter fold; booklet
Output capacity (w. finisher) Max.: 3,300 sheets
Output capacity (w/o finisher) Max.: 250 sheets
Stapling 50 sheets or 48 sheets + 2 cover sheets (up to 209 gsm)
Stapling output capacity Max. 1,000 sheets
Letter fold Up to 3 sheets
Letter fold capacity Max.: 30 sheets (tray); unlimited
Booklet 20 sheets or 19 sheets + 1 cover sheet (up to 209 gsm)
Booklet output capacity 100 sheets
Copy/print volume recommended (monthly) 25,000 pages
Copy/print volume max. (monthly) 80,000 pages
Toner lifetime Black 27,000
Toner lifetime CMY 25,000
Developer lifetime Black 600,000
Developer lifetime CMY 600,000
Drum lifetime Black 70,000
Drum lifetime CMY 55,000
Power consumption Less than 1.58 kW
TEC* 1.67
*Typical Electricity Consumption (weekly) by Energy Star regulations
System dimensions (WxDxH, mm) 615 x 685 x 779 (excl. ADF and lower paper tray unit)
System weight (kg) Approx. 85

System Features

Security ISO 15408 EAL3 (in evaluation); IP filtering and port blocking;
SSL2; SSL3 and TSL1.0 network communication;
IPsec support; IEEE 802.1x support; User authentication;
Authentication log; Secure Print; Hard disc overwrite (8 standard types);
Hard disc data encryption (AES 128); Memory data auto deletion; Confidential fax receiving;
Print user data encryption; Copy Protection (copy guard, password)
Accounting Up to 1,000 user accounts Active Directory support (user name + password + email + smb folder)
User function access definition
Biometric authentication (finger vein) optional
IC-Card authentication (IC-Card reader) optional
Software PageScope Net Care Device Manager
PageScope Data Administrator
PageScope Box Operator
PageScope Direct Print
Print Status Notifier
Driver Packaging Utility
Log Management Utility
  • All specifications relating to paper capacity refer to A4-size paper of 80 gsm quality.
  • All specifications relating to scanning, copying or printing speeds refer to A4-size paper that is scanned, copied or printed crosswise in multipage, simplex mode.
  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size. The actual consumables life will vary depending on the use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
