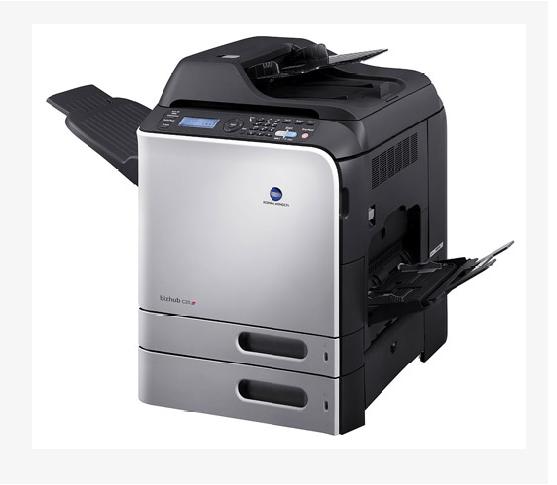

Bizhub C 20




Specifications

Copier Specifications
Copying Process Electrostatic laser print Tandem; indirect
Toner system Simitri® HD polymerised toner
Copy/Print Speed A4: 24 ppm colour
24 ppm monochrome
A4 Autoduplex: 24 ppm colour
24 ppm monochrome
First Copy/Print Time Copy:
Color: 28 sec.
Mono: 25 sec.
Print:
Colour and Mono: 18 sec.
Warm-up time Approx. 58 sec.
Copy resolution 600 x 600 dpi
Gradation 256 gradations
Multi-copy 1 - 99
Magnification 25-400% in 1% steps
Copy functions 2in1, 4in1
Duplex copy
Density adjustment
Electronic collation
Printer Specifications
Print resolution PhotoArt-9600
(600 x 600 dpi x 4 bit contone)
Controller CPU 500 Mhz
Page description language PostScript 3
PCL6 (XL3.0)
PCL 5e/c
XPS²
Operating systems Windows 2000/XP/XP64
Windows VISTA 32/64
Macintosh OSX 10.2, 10.3, 10.4
Windows Server 2003/2003x64
Linux: Redhat v9.0, SUSE v8.2
Print functions ICC profile/Simulation support
Direct print of TIFF, JPEG, PDF, XPS²
USB direct printing¹ of TIFF
JPEG, PDF, XPS²
Job programming "Easy Set” - storable print settings
Overlay, Watermark
Scanner Specifications
Scan speed Colour: Up to 24 opm
Mono: Up to 24 opm
Scan resolution Max. 600 x 600 dpi
Scan modes TWAIN Scan
Windows WIA scan
Scan-to-eMail
Scan-to-SMB
Scan-to-FTP
Scan-to-USB Memory
File formats JPEG, TIFF, PDF
Scan destinations Up to 220 destinations (shared with fax)
Fax Specifications
Fax standard Super G3
Fax transmission Analogue
Fax resolution Max.: 203 x 392 dpi (superfine)
Fax compression MH, MR, MMR, JBIG
Fax modem Up to 33.6 Kbps
Fax destinations Up to 220 destinations
Fax functions Time shift
PC-Fax
Receipt to eMail
System Features
Security IP filtering
IPsec support
Secure Print (optional)
IEEE802.1
Software PageScope NetCare
PageScope Network
Setup PageScope
NDPS Gateway
Page Scope Direct Print
LinkMagic
PaperPort SE
System Specifications
System memory Standard: 256 MB
Max.: 768 MB
System hard disc 40 GB optional
Interface 10Base-T / 100Base-TX / 1000 Base-T - Ethernet
USB 2.0
Automatic document feeder Duplex: Up to 50 originals
A4; 35 -128 g/m²
Paper size A6 - A4; Custom paper sizes (92 - 216 mm x 148 - 356 mm)
Paper weight 60 - 210 g/m²
Paper input capacity Standard: 350 sheets
max.: 850 sheets
Paper output capacity max.: 250-sheet face-down standard
Automatic duplexing A4
60 - 90 g/m²
Power Consumption Power Requirements: 220 V - 240 V 50/ 60 Hz
max.: < 1.25 kW
System dimensions (WxDxH, mm) 539 x 590 x 578 mm
System weight Approx. 55 kg
  • All specifications relating to paper capacity refer to A4-size paper of 80 gsm quality.
  • All specifications relating to scanning, copying or printing speeds refer to A4-size paper that is scanned, copied or printed crosswise in multipage, simplex mode.
  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size. The actual consumables life will vary depending on the use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
